Racing internal rotor ignition SELETTRA variable advance with LIGHTS

Digital with 2 curves Universal without taper

The only Digital Internal Rotor ignition that provides outstanding performance and reliability while also powering the electrical system, the wait is over !!!

2 Curves selectable while running

Digital spark system significantly more powerful and faster than analog ignitions resulting in increased performance due to improved fuel combustion

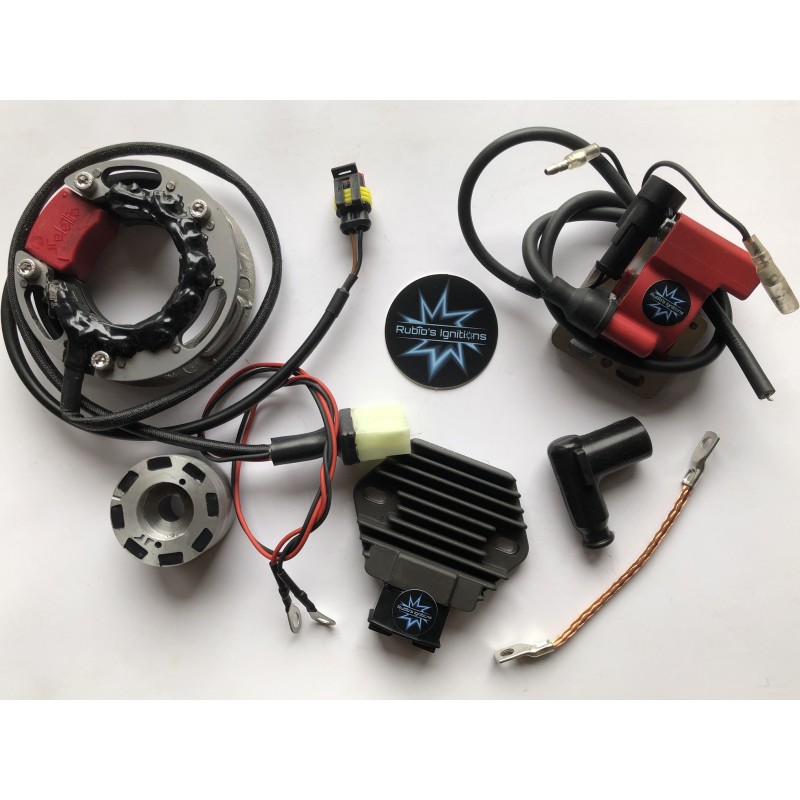

Package includes:

Stator/generator SELETTRA SML with 94mm plate

Dedicated 12V dc voltage regulator

Rotor SELETTRA SML diam. 48mm from 225gr without taper, to be made

SML/KZ digital coil programmed with 2 bends

5 kohm pipette

ground cable

Instructions in Italian or English sent by email

Exhaust Valve:

Any electronic exhaust valve is not handled.

The exhaust valve must be mechanical or pneumatic

or left open at all times if mechanical or pneumatic is not possible.

Electrical System:

ignition produces 12v and as much as 65 watts at 9500 rpm (see attached image Rpm/watt chart )

the ignition can be used without a battery (the customer will have to quantify the consumption of their electrical system if it is compatible with the correct produced) or also by connecting it to a rechargeable battery (recommended choice), even a small one to which to connect the electrical system of the motorcycle/scooter etc.

MAXIMUM SERIALITY 'NEW AND ORIGINAL PRODUCTS SELETTRA shipping by express courier

IF YOU WANT A PVL OR SELETTRA BUT YOUR ENGINE IS NOT AMONG THOSE LISTED, DO NOT HESITATE TO CONTACT ME, WE WILL CHECK THE MEASUREMENTS TOGETHER AND FIND

THE RIGHT COMPONENTS FOR YOURS AS WELL !

N.B.: these are after market products, so despite our continuous search for the most correct applications, there may still be a need to make small modifications for the perfect fit and assembly to a wide variety of engines.
